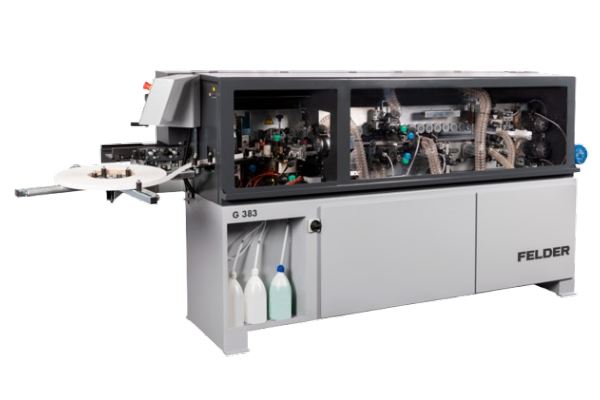

G 383
|
||||
|
|
Electrical setup
|
|||
|
001
|
3x 400 V 50 Hz
|
S
|
||
|
002
|
3x 400 V 60 Hz
|
O
|
||
|
003
|
3x 230 V 50/60 Hz
|
O
|
||
|
004
|
50 Hz
|
S
|
||
|
005
|
60 Hz
|
W
|
||
|
|
Centrally controlled premilling unit - can be disengaged
|
S
|
||
|
|
Adjustable cutting depth (mm)
|
0-2
|
||
|
|
Tool diameter (mm)
|
60
|
||
|
|
Max. processing height (mm)
|
50
|
||
|
|
Asymmetrical diamond tipped V-cut units
|
2+2
|
||
|
|
RPM
|
12000
|
||
|
|
Power (kW)
|
2x0,75
|
||
|
|
||||
|
|
Working dimensions
|
|||
|
|
Edge thickness min.–max. (mm)
|
0,4–5,0
|
||
|
|
Work piece thickness min.–max. (mm)
|
10-50
|
||
|
|
Min. workpiece width (mm)
|
95
|
||
|
|
Min. workpiece length (mm)
|
210
|
||
|
|
||||
|
|
Units
|
|||
|
|
Coiled edge feeding 0.4-3mm, strip up to 5mm
|
S
|
||
|
|
Guillotine shears up to 3 mm in thickness in Hard-PVC/ABS
|
S
|
||
|
|
Glue unit for glue granulate (~250lfm per 1kg)
|
S
|
||
|
66
|
Changeable 1.2 kg Teflon coated gluepot for hot melt glue granulate (~ 250rm for each 1 kg of granulate on a 19mm panel) |
O
|
||
|
50
|
Additional changeable gluepot (#66)
|
O
|
||
|
|
Spring loaded pressure unit with 1 pressure + 1 free moving roller
|
S
|
||
|
|
9,000 rpm, 0.18kW end trimming unit, with Ø 80 mm 16 tooth HW-Saw blades
|
S
|
||
|
49
|
End trimming unit for straight and radius cut, 12,000 U/min, 0.22 kW, HW-saw blade Z 16, Ø 100 mm
|
S
|
||
|
|
Multifunction milling aggregate, 12,000 rpm, 0.22 kW Flush trimming, radius trimming and bevel trimming
|
S
|
||
|
|
Tooling for 2 mm radius
|
S
|
||
|
|
Single motor corner rounding unit for post and soft form profiles up to 50mm
|
S
|
||
|
10
|
Radius scraping unit for R=2 mm, mechanically controlled
|
S
|
||
|
20
|
Glue scraping unit, mechanically controlled
|
O
|
||
|
30
|
Buffing unit 2 motors 1400 rpm 900W
|
S
|
||
|
32
|
Spraying unit for cleaning agent on the buffing unit
|
O
|
||
|
42
|
Release agent spraying unit, machine infeed side
|
O
|
||
|
45
|
Infrared heat lamp for pre-heating board edges |
O
|
||
|
81
|
Tool prep R=1mm instead of 2mm
|
W
|
||
|
|
||||
|
|
Finishing units
|
|||
|
53
|
Spraying unit for lubrication agent
|
O
|
||
|
|
||||
|
|
Operation
|
|||
|
|
Control panel 7” colour touch screen
|
S
|
||
|
|
||||
|
|
Through feed
|
|||
|
|
Workpiece chain feeder
|
S
|
||
|
|
7 m/min feed speed (~ 300lfm/h)
|
S
|
||
|
|
Extensible workpiece support
|
S
|
||
|
60
|
Edge band feed support plade D=800 mm instead of D=600 mm
|
O
|
||
|
61
|
Pull-out workpiece support with roller tracks instead of the standard workpiece support
|
O
|
||
|
|
||||
|
|
General
|
|||
|
|
Extraction connector Ø in mm
|
120 + 2x80
|
||
|
|
Weight kg (with standard configuration)
|
642
|
||
|
|
Length in mm
|
3616
|
||
|
|
||||
|
|
Important Accessories
|
|||
|
200-127
|
Changeable gluepot
|
O
|
||
|
|
||||
|
|
Transport
|
|||
|
221
|
Preparation for container
|
O
|
||
|
|
||||
