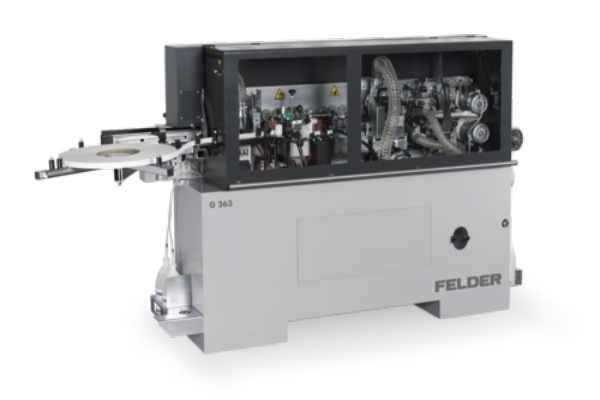

G 263
|
||||
|
|
Electrical setup
|
|||
|
001
|
3x 400 V
|
S
|
||
|
002
|
3x 230 V
|
W
|
||
|
003
|
1x 230 V
|
O
|
||
|
004
|
50 Hz
|
S
|
||
|
005
|
60 Hz
|
O
|
||
|
|
Centrally controlled premilling unit - can be disengaged
|
S
|
||
|
|
Chip removal step adjustment
|
0 / 0,5 / 1 / 2
|
||
|
|
Tool diameter (mm)
|
60
|
||
|
|
Max. processing height (mm)
|
45
|
||
|
|
Asymmetrical diamond tipped V-cut units
|
2+2
|
||
|
|
RPM
|
12000
|
||
|
|
Power (kW)
|
2x0,75
|
||
|
|
||||
|
|
Working dimensions
|
|||
|
|
Edge thickness min.–max. (mm)
|
0,4–5,0
|
||
|
|
Work piece thickness min.–max. (mm)
|
10-45
|
||
|
|
Min. workpiece width (mm)
|
95
|
||
|
|
Min. workpiece length (mm)
|
210
|
||
|
|
||||
|
|
Units
|
|||
|
|
Coiled edge band feed support plate
|
S
|
||
|
|
Edge feeding is automatic for roller materials with a thickness of 0.4-2mm, strip glue in separated fields
|
S
|
||
|
|
Guillotine shears up to 2 mm in thickness in Hard-PVC/ABS
|
S
|
||
|
|
Glue unit for glue granulate from the teflon coated glue pot (~250lfm per 1kg granules on a 19mm plate)
|
S
|
||
|
|
Spring loaded pressure unit with 1 pressure roller and 1 free moving roller
|
S
|
||
|
|
Guillotine cutting unit with cutting knives for end cuts
|
S
|
||
|
|
Glue unit for glue granulate from the teflon coated glue pot (~250lfm per 1kg granules on a 19mm plate)
|
S
|
||
|
|
Tooling for 2 mm radius
|
S
|
||
|
10
|
Radius scraping unit for R=2 mm, mechanically controlled
|
S
|
||
|
10A
|
Price reduction without radius scraping unit
|
O
|
||
|
20
|
Glue scraping unit, mechanically controlled
|
O
|
||
|
30
|
Buffing unit 2 motors 1400 rpm 900W
|
S
|
||
|
30A
|
Price reduction without buffing unit
|
O
|
||
|
32
|
Spraying unit for cleaning agent on the buffing unit |
O
|
||
|
42
|
Release agent spraying unit, machine infeed side
|
O
|
||
|
45
|
Infrared heat lamp for pre-heating board edges |
O
|
||
|
81
|
Tool prep R= 1mm instead of 2mm
|
W
|
||
|
|
||||
|
|
Finishing units
|
|||
|
53
|
Spraying unit for lubrication agent
|
O
|
||
|
|
||||
|
|
Operation
|
|||
|
|
Control panel with LCD display and keypad
|
S
|
||
|
|
||||
|
|
Through feed
|
|||
|
|
Workpiece chain feeder
|
S
|
||
|
|
7 m/min feed speed (~ 250lfm/h)
|
S
|
||
|
|
Extensible workpiece support
|
S
|
||
|
|
||||
|
|
General
|
|||
|
|
Extraction connector Ø in mm
|
120 + 2x80
|
||
|
|
Weight kg (with standard configuration)
|
450
|
||
|
|
Length in mm
|
2300
|
||
|
|
||||
|
|
Important Accessories
|
|||
|
210
|
Rolling carriage (410-160)
|
O
|
||
|
|
||||
|
|
Transport
|
|||
|
221
|
Preparation for container
|
W
|
||
|
|
||||
