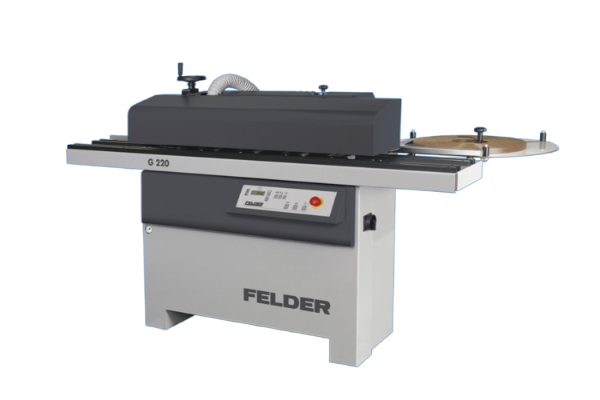

Felder servakandi liimija G 220
.png)
| G 220 |
| |
Electrical setup |
| 001 |
3x 400 V |
S |
| 002 |
3x 230 V motor voltage |
O |
| 003 |
1x 230 V motor voltage |
O |
| 004 |
50 Hz |
S |
| 005 |
60 Hz |
O |
| |
| |
Working dimensions |
| |
Edge thickness min.–max. (mm) |
0,4–2,0 |
| |
Work piece thickness min.–max. (mm) |
10–45 |
| |
Min. workpiece width (mm) *The minimal workpiece width varies depending on the workpiece length, height and type of surface |
90 |
| |
Min. workpiece length (mm) |
250 |
| |
| |
Units |
| |
Coiled edge band feed support plate |
S |
| |
Edge feeding is automatic for roller materials with a thickness of 0.4–2 mm, strip glue in separate feed |
S |
| |
Guillotine shears for cutting coiled edge bands up to 2 mm in thickness in Hard-PVC/ABS |
S |
| |
Glue unit for glue granulate from the teflon coated glue pot (~ 250lfm per 1kg granules on a 19mm plate) |
S |
| |
Spring loaded pressure unit with 1 pressure roller and 1 free moving roller |
S |
| |
Guillotine cutting unit with cutting knives for end cuts |
S |
| |
Multifunction milling aggregate, 9,000 rpm, 0.5 kW, radius trimming and bevel trimming |
S |
| |
Tooling for 2 mm radius |
S |
| |
| |
Operation |
| |
Operating panel with LCD display and keypad |
S |
| |
| |
Through feed |
| |
Workpiece belt feeder |
S |
| |
5.5 m/min feed speed (~ 200lfm/h) |
S |
| |
Extensible workpiece support |
S |
| |
| |
General |
| |
Extraction connector Ø in mm |
120 |
| |
Weight kg (with standard configuration) |
310 |
| |
Length in mm |
2000 |
| |
| |
Important Accessories |
| 210 |
Rolling carriage |
O |
| |
| |
Transport |
| 221 |
Preparation for container Edgebander |
O |
S...Standard equipment
O...Option
W...Optional equipment at no extra cost
-...Not available
