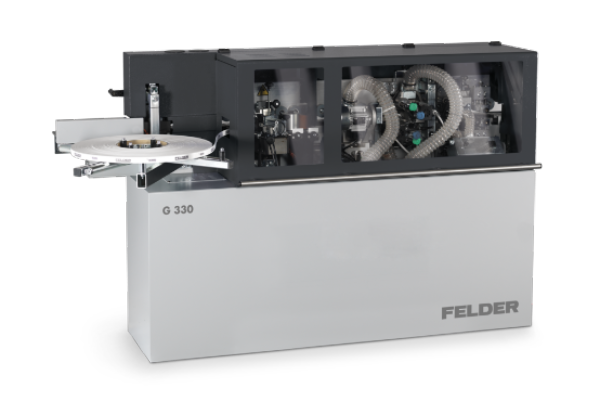

G 330
|
||||
|
|
Electrical setup
|
|||
|
001
|
3x 400 V
|
S
|
||
|
002
|
3x 230 V motor voltage
|
O
|
||
|
003
|
1x 230 V motor voltage
|
O
|
||
|
004
|
50 Hz
|
S
|
||
|
005
|
60 Hz
|
O
|
||
|
|
||||
|
|
Working dimensions
|
|||
|
|
Edge thickness min.–max. (mm)
|
0,4–3,0
|
||
|
|
Work piece thickness min.–max. (mm)
|
10-45
|
||
|
|
Min. workpiece width (mm) *The minimal workpiece width varies depending on the workpiece length, height and type of surface
|
70
|
||
|
|
Min. workpiece length (mm)
|
210
|
||
|
|
||||
|
|
Units
|
|||
|
|
Coiled edge band feed support plate
|
S
|
||
|
|
Edge feeding is automatic for roller materials with a thickness of 0.4–3 mm, strip glue in separate feed
|
S
|
||
|
|
Guillotine shears for cutting coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS
|
S
|
||
|
|
Glue unit for glue granulate from the teflon coated glue pot (~ 250lfm per 1kg granules on a 19mm plate)
|
S
|
||
|
|
Spring loaded pressure unit with 1 pressure roller and 1 free moving roller
|
S
|
||
|
|
9,000 rpm, 0.18kW end trimming unit, with Ø 80 mm 16 tooth HW-Saw blades
|
S
|
||
|
|
Multifunction milling aggregate, 12,000 rpm, 0.22 kW Flush trimming, radius trimming and bevel trimming
|
S
|
||
|
|
Tooling for 2 mm radius
|
S
|
||
|
10
|
Radius scraping unit for R= 2 mm, mechanically controlled (!20/30)
|
O
|
||
|
20
|
Glue scraping unit, mechanically controlled (!10/30)
|
O
|
||
|
30
|
Buffing unit with 2 motors at 1400 rpm and 900 W (!10/20)
|
O
|
||
|
32
|
Cleaning agent sparaying unit for polishing unit (#30)
|
O
|
||
|
50
|
Heated entry ruler
|
O
|
||
|
|
||||
|
|
Operation
|
|||
|
|
Operating panel with LCD display and keypad
|
S
|
||
|
|
||||
|
|
Through feed
|
|||
|
|
Workpiece chain feeder
|
S
|
||
|
|
8 m/min feed speed (~ 300lfm/h)
|
S
|
||
|
|
Extensible workpiece support
|
S
|
||
|
60
|
Edge band feed support plate D=800 mm instead of D=600 mm
|
O
|
||
|
|
||||
|
|
General
|
|||
|
|
Extraction connector Ø in mm
|
120
|
||
|
|
Weight kg (with standard configuration)
|
350
|
||
|
|
Length in mm
|
2000
|
||
|
|
||||
|
|
Important Accessories
|
|||
|
210
|
Rolling carriage
|
O
|
||
|
|
||||
|
|
Transport
|
|||
|
221
|
Preparation for container Edgebander
|
O
|
||
|
|
||||
