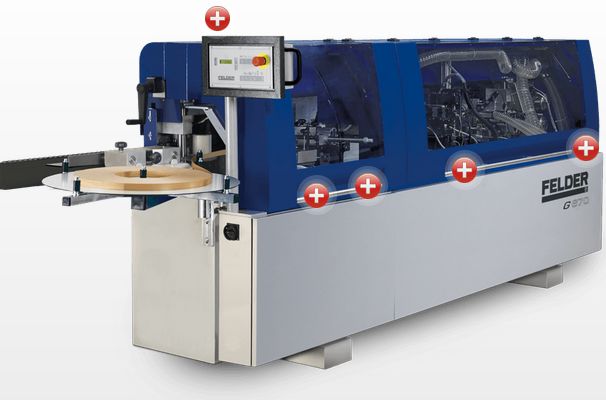

| G 670 | ||||
| Electrical setup | ||||
| 001 | 3x 400 V | S | ||
| 002 | 3x 230 V motor voltage | O | ||
| 004 | 50 Hz | S | ||
| 005 | 60 Hz | O | ||
| Working dimensions | ||||
| Edge thickness min.–max. (mm) | 0,4–6,0 (8) | |||
| Work piece thickness min.–max. (mm) | 8–60 | |||
| Min. workpiece width (mm) *The minimal workpiece width varies depending on the workpiece length, height and type of surface | 70 | |||
| Min. workpiece length (mm) | 140 | |||
| Units | ||||
| Coiled edge band feed support plate Ø 800 mm, for PVC/ABS | S | |||
| Edge feeding is automatic for edge materials with a thickness of 0.4–6 mm, strip glue in separate feed | S | |||
| Teflon coated 2 kg capacity glue pot with quick change system, glue application via an adjustable glue roller ,~ 250lfm per 1kg granules on a 19mm plate | S | |||
| Guillotine trimming unit for the precutting of PVC/ABS edgeband material 0.4–3.0 mm thick | S | |||
| Pressing unit is mechanically pre-stressed, 1 straight pressure roller and 2 conic additional pressure rollers, adjustment by means of an edge portion | S | |||
| End trimming unit with 2 independant motors, each with 0.2 kW and 12,000 rpm, both manually tiltable between 0°–10° | S | |||
| Multifunctional milling unit, 12,000 rpm, 0.50 kW, radius milling, flush milling, chamfer milling for thin edges, adjustment by means of edge section | S | |||
| Corner processing unit for soft and post-forming workpieces for processing front edges (edge thickness min.–max. 0.4–3.0 mm, max. workpiece height 45 mm, min., workpiece length 270 mm) | S | |||
| Tooling for 2 mm radius | S | |||
| 40 | Tooling for 3 mm radius | W | ||
| 10 | Radius scraping unit for R= 2 mm, mechanically controlled | O | ||
| 20 | Glue scraping unit, mechanically controlled | O | ||
| 30 | Buffing unit with 2x 900 W motors at 1400 rpm | O | ||
| 32 | Cleaning agent sparaying unit for polishing unit (#30) | O | ||
| 50 | Heated entry ruler | O | ||
| 55 | 8 mm package, including strip hoppers with needle bearings for automatic feeding of solid timber edges, including a driven pressure roller. Edge dimensions (W / H) 6x 64 mm/7x 45 mm/8x 23 mm | O | ||
| 76 | Fan for electric box | O | ||
| Operation | ||||
| Operating panel with LCD display and keypad | S | |||
| Through feed | ||||
| Workpiece chain feeder | S | |||
| 11 m/min feed speed (~ 420lfm/h) | S | |||
| Extensible workpiece support | S | |||
| General | ||||
| Extraction connector Ø in mm | 120 | |||
| Weight kg (with standard configuration) | 900 | |||
| Length in mm | 4550 | |||
| Important Accessories | ||||
| 200-109 - Changeable gluepot for G 660/G 670/G 680 | O | |||
| 200-110 - A support arm for the gluepot on the machine chassis | O | |||
| Transport | ||||
| 221 | Preparation for container Edgebander | O | ||
