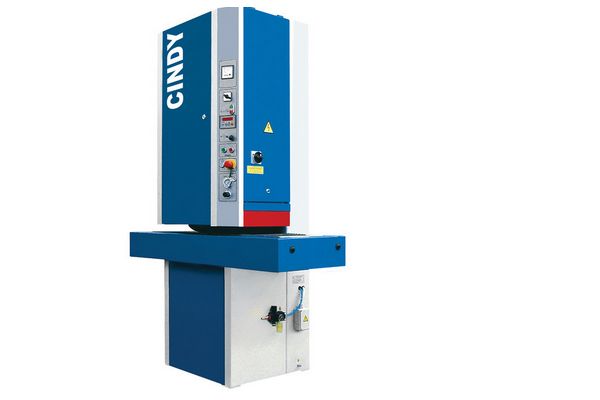

Wide-belt grinder Cindy is designed for calibration and fine grinding of parts made of wood.
| Weight |
kg |
590/690/760/820 |
| Pressured air consumption |
l/min |
20 |
| Machine dimensions (L/W/H) |
mm |
1500 × 850 × 2200/1850 × 850 × 2200/1500 × 1000 × 2200/1850 × 1000 × 2200 |
| Desk lifting motor power |
kW |
- |
| Diameter of exhaust opening |
mm |
150 |
| Air suction speed |
m/s |
20 |
| Voltage / frequency |
V / Hz |
3/N/PE 400V/50Hz |
| operating pressure |
bar |
5 |
| Work width |
mm |
300/400 |
| Maximum workpiece height |
mm |
3-200 |
| Max. operating width |
mm |
300/400 |
| Min. - Max. workpiece height |
mm |
3-200 |
| Feed belt speed |
m/min |
4,5/9 |
| Grinding belt width |
mm |
330/430 |
| Grinding roller diameter |
mm |
160/2 x 160 |
| Grinding belt speed |
m/min |
18 |
| Input of grinding belt motor |
kW |
- |
| Input of feeding belt motor |
kW |
0,3/0,47 |
| Two-speed feeding belt motor |
kW |
- |
Standard equipment
- operating roller rubber coated - diameter 160 mm, 90 Sh
- 2. Operating roller rubber coated - diameter 160 mm, 45 Sh (in version RR, RC)
- grinding belt width 1900 mm
- flat and inclined base
- motorized lift of grinding unit
- automatic switching star/triangle
- ammeter for measuring the grinding unit
- current Control Belt oscillation by means of fibre-electronic sensor with infra-red beam
- electronic desk position measuring with digital indicator
- two speeds of feeding belt 4,5 / 9 m/min
- rubber coated thrust rollers
- pneumatic disk brake of main motor
- pneumatic belt stretching
- Noise pollution inspection
- CE electric and safety standard
Optional accessories
- motor 7,5 kw (10 HP)
- operating roller rubber coated – diameter 160 mm, 30-45-60-90 Sh
- operating roller steel, replacing rubber coated roller - diameter 160 mm
- two speeds of grinding belt 9 / 18 m/s
- two speed motor for desk lifting
- desk positioner
- automatic positioner of workpiece height
- frequency converter of feeding belt speed 3-12 m/min
- frequency converter of the main motor- belt speed 3-24 m/s
- pneumatic time blow for cleaning 1 grinding belt
- pneumatic time blow with nozzle oscillation for cleaning 1 grinding belt
- extraction support ruler 1,2 m
- extraction support ruler 5,2 m long
- thrust bars for grinding short pieces
- automatic centering of feeding belt
- limiting the maximum workpiece
- reduction module for cleaning parts with rotating orbital blow
- module for cleaning parts with rotating textile or nylon Brush 140 mm diameter, 1,1 kw / 1,5 HP
- vacuum desk
- air pump 2,2 kw
- operating pressure switch 3,5-4 bar
