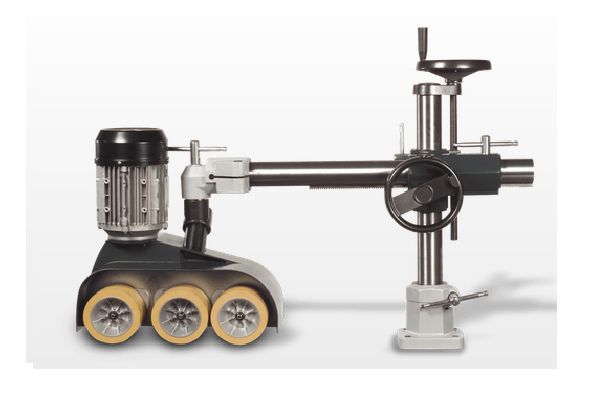

Technical specifications power feeders |
| |
3x 400 V, 50 Hz, 1.0 HP (0.75 kW) (05.0.010) |
S |
| |
1x 230 V, 50 Hz, 0.7 HP (0.51 kW) (05.3.010) |
O |
| |
Simple tilting head |
O |
| |
3 soft rubber feeder rollers, dia. 120 mm, width 60 mm |
S |
| |
8 speeds 3.2/6.3/8.3/12.5/16.7/25.0/32.0/63.0 m/min |
S |
| |
| |
General |
| |
Weight in kg |
59 |
| |
| |
Important Accessories |
| |
Precision feeder rollers, 3 pcs., dia. 120 mm, width 60 mm (05.1.023) |
O |
| |
Extended horizontal tube, length 1050 mm (05.0.030) |
O |
| |
Power feeder tilt-away mount suitable for Felder machines up to Series 6, yr. of man. 1999 (11.2.014) |
O |
| |
Power feeder tilt-away mount suitable for Felder machines from Series 7, yr. of man. 1996 (11.3.014) |
O |
| |
Tilt-away bracket for power feeder suitable for Felder F 900, Format-4 profil 45 (430-014+1) |
O |
| |
Set: Swing-away device for power feeder + extended horizontal tube, suitable for Felder F 900, Format-4 profil 45 (430-015) |
O |
| |
S...Standard equipment
O...Option
W...Optional equipment at no extra cost
-...Not available
